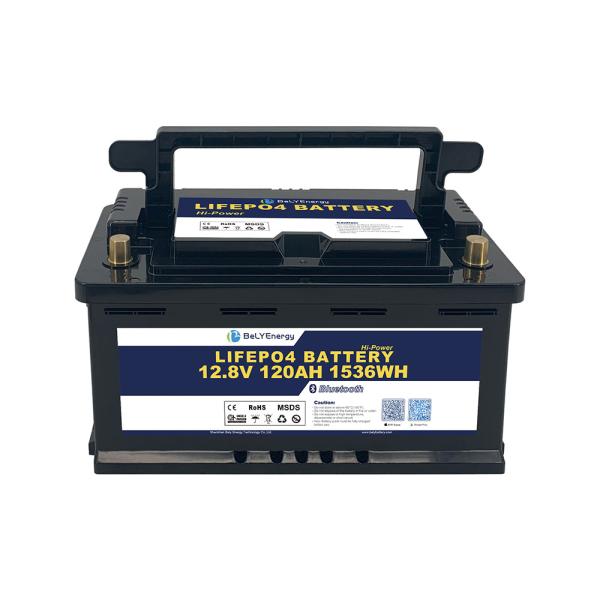

12V LiFePo4 Battery 12V 120Ah storage batteries For for car / truck / Marine
Are you looking for the the best LiFePO4 battery?
Bely has you covered offering the latest in high performance lithium batteries for your needs!
lithium battery up to 5x the lifespan of standard lead-acid battery. This series is temperature resistant and lightweight, and offers a higher charge/discharge cycles, about 3,000 cycles at 90% DOD (depth of discharge). LiFePO4 cathode is intrinsically safer than the LiCo02 or the manganese cathode. Our wide variety of standard and high performance batteries ensure we have what you need, when you need it.
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it. Contact with our sales team to get more informations about us and products.
Bely 12V 120Ah LiFePO4 battery pack support max contiunous discharging current 100A and Parallel Connection Or Series Connection Possible(Maximum 4 Units). Build in Smart BMS with high safety control.
Benifits Of 12v 120ah lithium ion Battery Comparing with Lead Acid Battery
1. Extremely safe and stable chemistry: BMS built inside to balance protect the battery.
2. Long life-cycle: Can be circularly used, best can up to 3000 times recycles, 8 times of Lead acid battery.
3. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.
4. Good performance at high temperature and high temperature resistance
5. Low self-discharge rate, less than 3% monthly.
6 .No memory effects and highly efficient charge.
7.Environment friendly: Clean and Green energy poses no pollution on our environment.
8. Prismatic cells UL1642 & UN38.3 & ICE62619 certified, packs CE & 38.3 & MSDS.
9.Series & Parallel connections are available.
Specification of Lifepo4 Battery 12V 120AH
| Specification | Parameter | Remarks |
| Nominal | Voltage | 12.8V |
| Capacity | 120Ah/1536Wh |
| Physical | Dimension | 355mm x 175mm x 190mm |
| Weight | 14KGS |
| Electrical | Working Voltage Range | 10~14.6V |
| End of Charge Voltage | 14.4~14.6V |
| Recommended Charging Current | 60A |
| Max. Charging Current | 100A |
| Max. Continuous Discharging Current | 100A |
| Peak Discharging Current (≤20 sec.) | 150A |
| Others | Charging Temperature Range | 0~55℃ |
| Discharging Temperature Range | -20~60℃ |
| Storage Temperature Range | -20~60℃ |
| Cycle Life | ≥3000Cycles |
| Internal Impedance | ≤20mΩ |
| Connector | Copper pillar |
| Protection Class | IP67 |
| Life Time Designed@+25℃ | 10 Years |
| Battery Cells Type | Prismatic |
Smart Built-in BMS
Passive balancing (active balance optional), low voltage cutoff, high voltage cutoff, short circuit protection and temperature protection for increased performance and longer life.
Application
Motohomes, caravans and RV
Photovoltaics, solar systems and renewable energies
High performance traction/storage battery
Fishing, electric boat motors and sonar
Mobile power supply, camping and leisure
Emergency power supply/UPS
Our Services & Strength

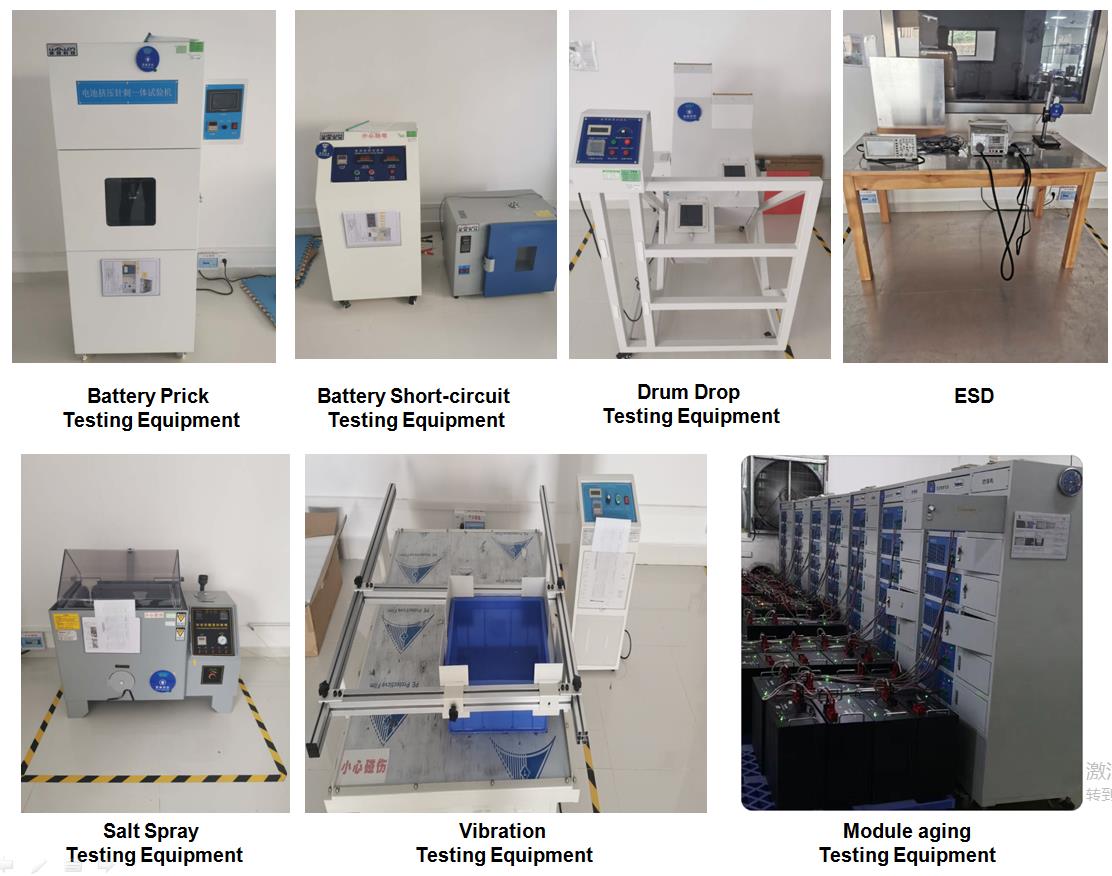

With reliable test equipments, batteries parameter and specification can satisfy the customers' requirements and meet the market standards well. Quality can be guaranteed and assured for shipments.
Certificates approve qualified production and good quality products
FAQ:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit?
A.Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q3. How to proceed with an order?
A. Firstly let us konw your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly we arrange the production.
Q4. Is it OK print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Which certificates do you have?
A. We have CE/FCC/ROHS/UN38.3/MSDS ... etc.
Q6. How about warranty?
A. 2 years warranty. Enable to prolong.
